#1663697 - 06/14/09 05:26 PM
First time using Fiberglass
|
Smithlink
SD Ralph Wiggum
Registered: 04/14/08
Posts: 26
|
Offline
|
|
I got sick of my big black box in the back of my truck and decided to try building my own fiberglass box. The color is not a perfect match with the interior but it will work until I can find the right paint.
(Any comments are greatly appreciated since I'm still learning about working with fiberglass.)
Here's the build:

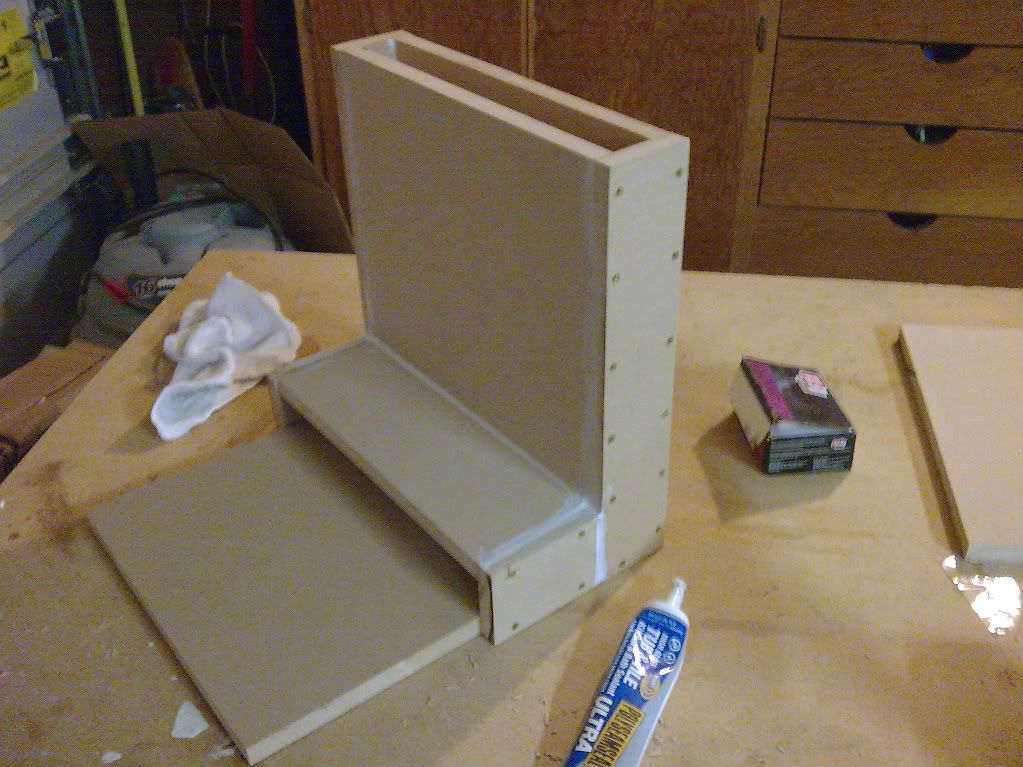

The port.

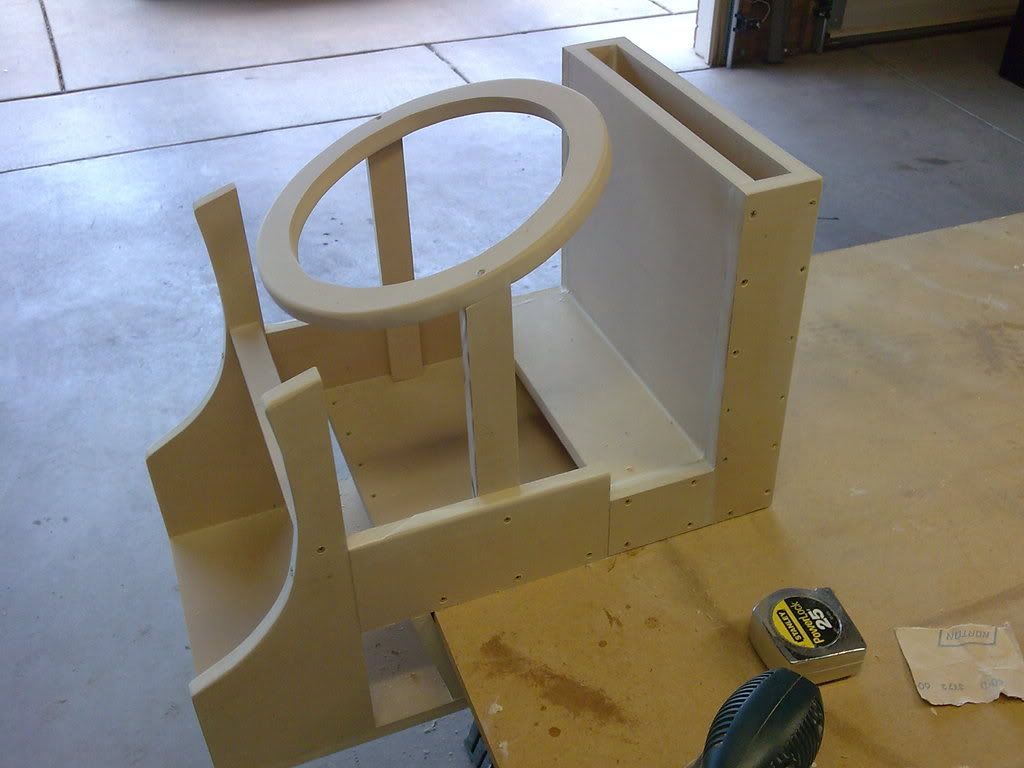

The mdf all put together and ready to be wrapped in fleece.
Fleece put on with many staples.
Layer of just resin.

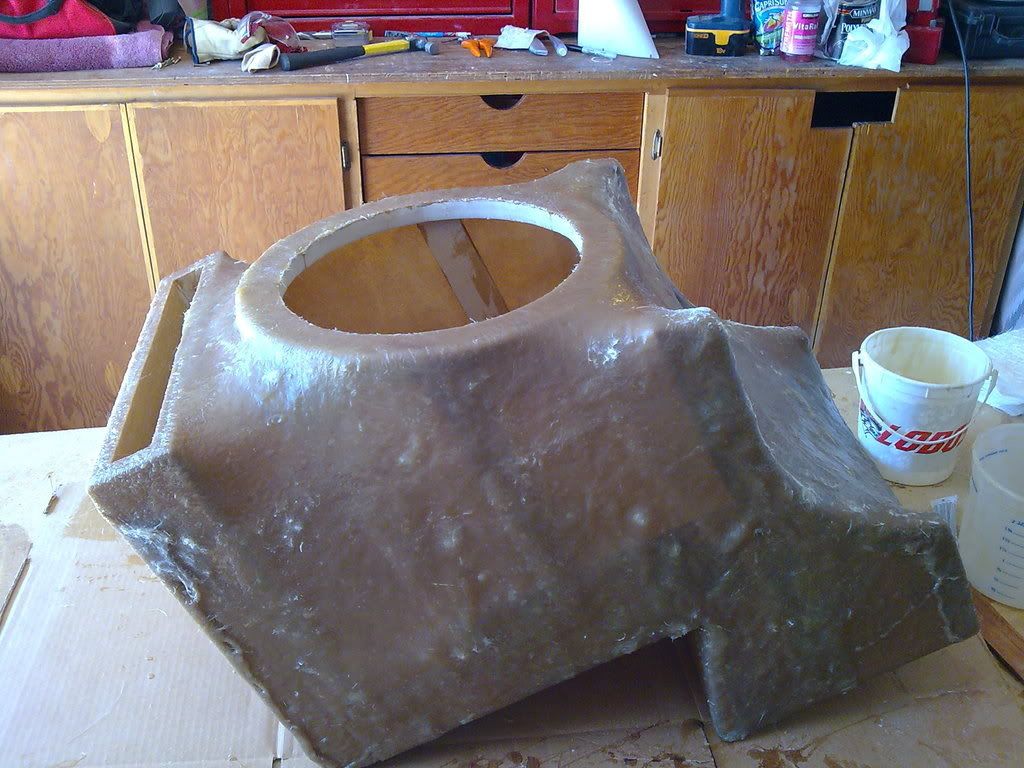

Layer of fiberglass. (I know its bad...haha bondo will fix that though.)

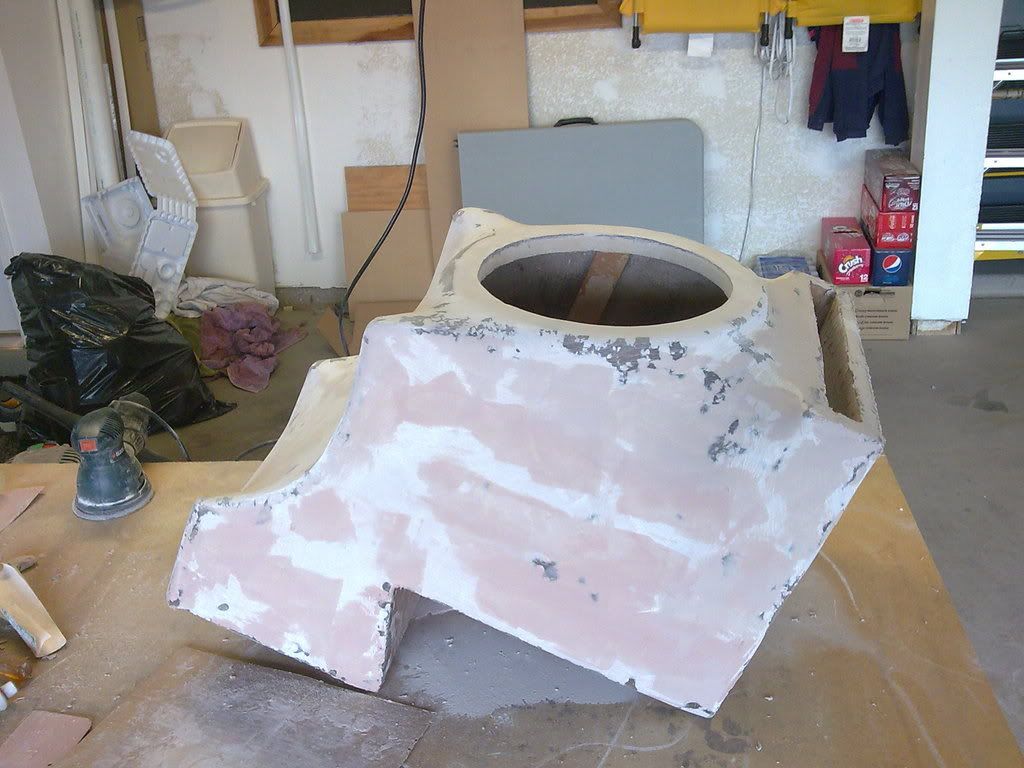

First layer of bondo.

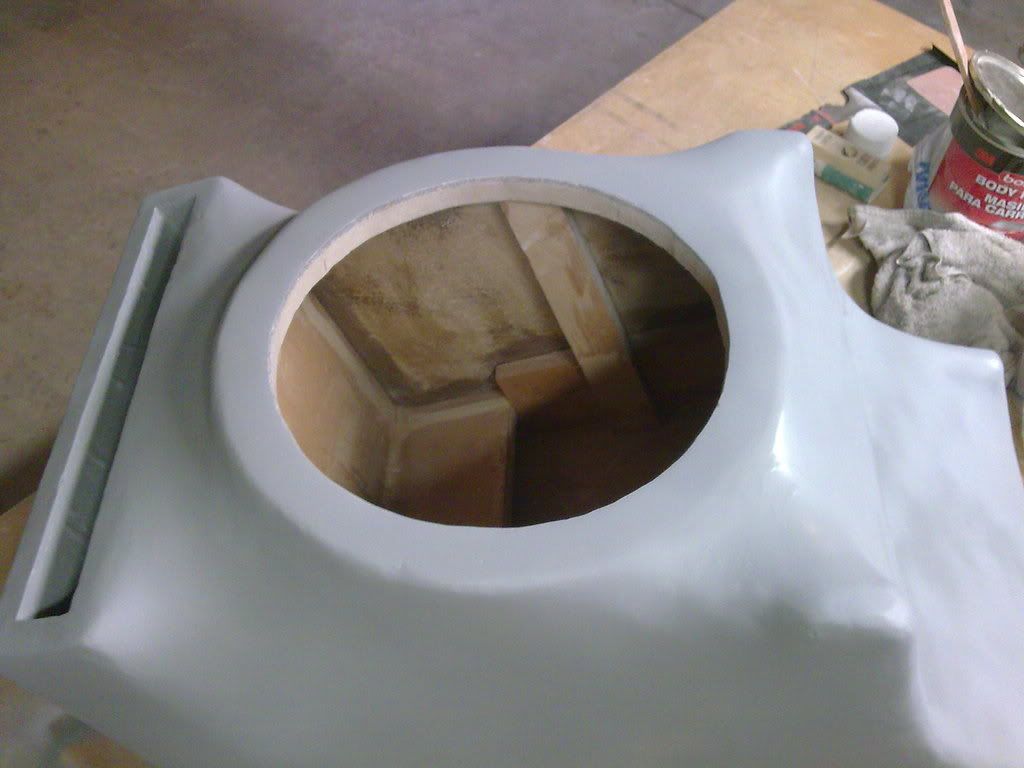

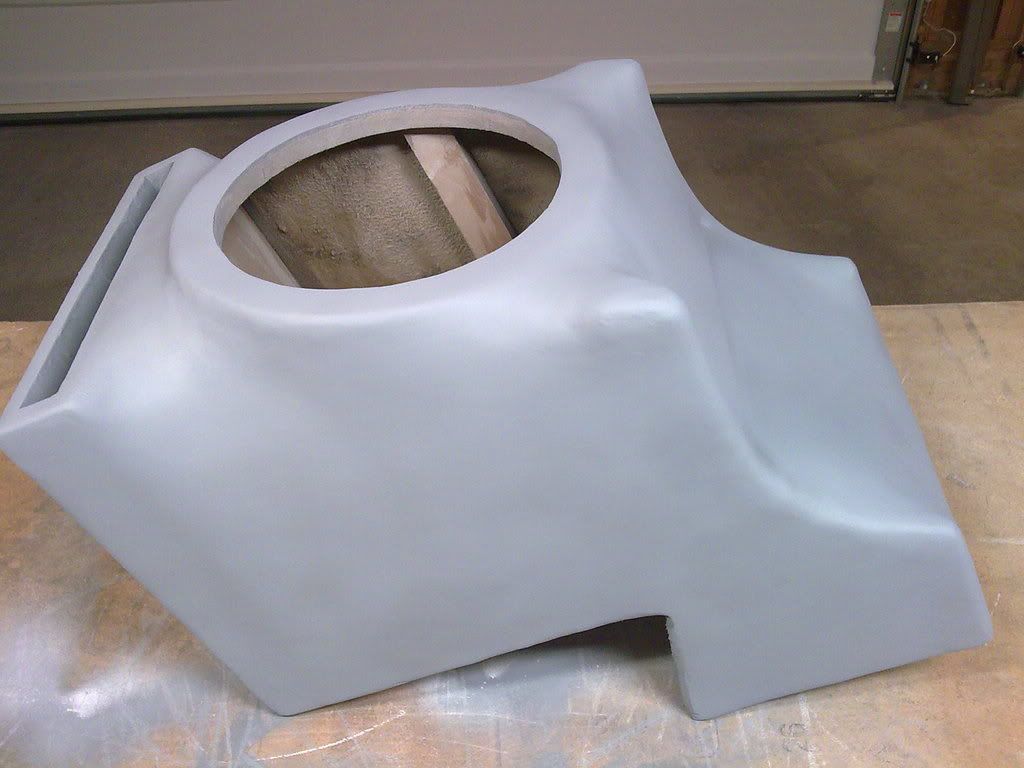

Putting some primer on.

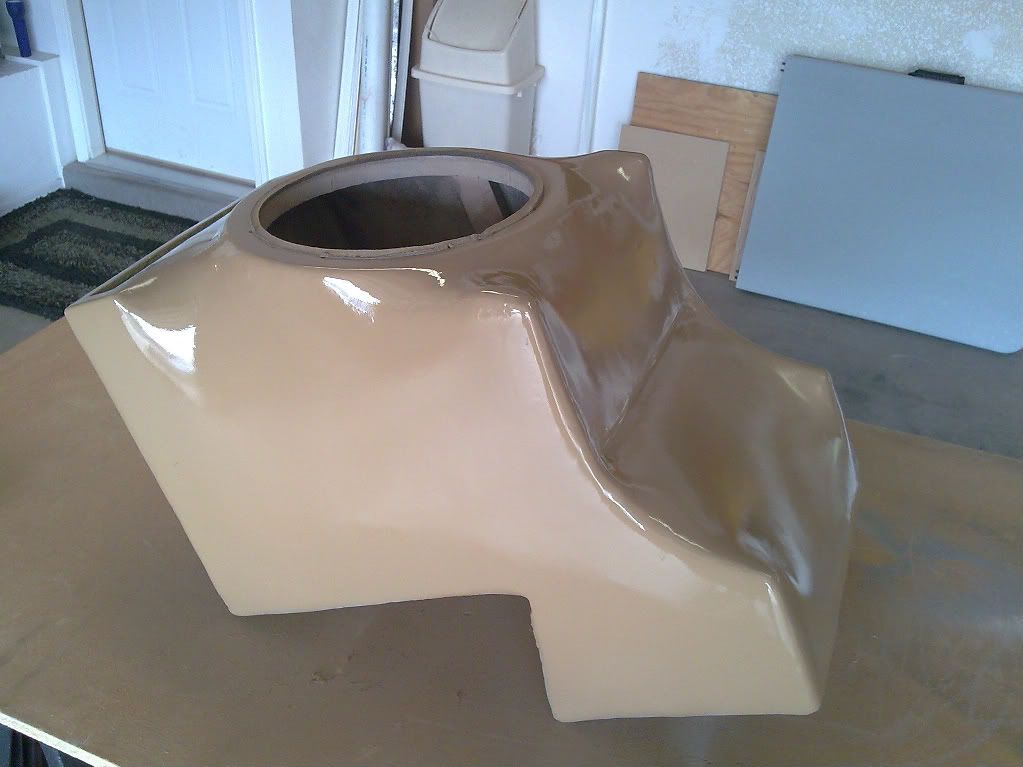

Finally some paint.

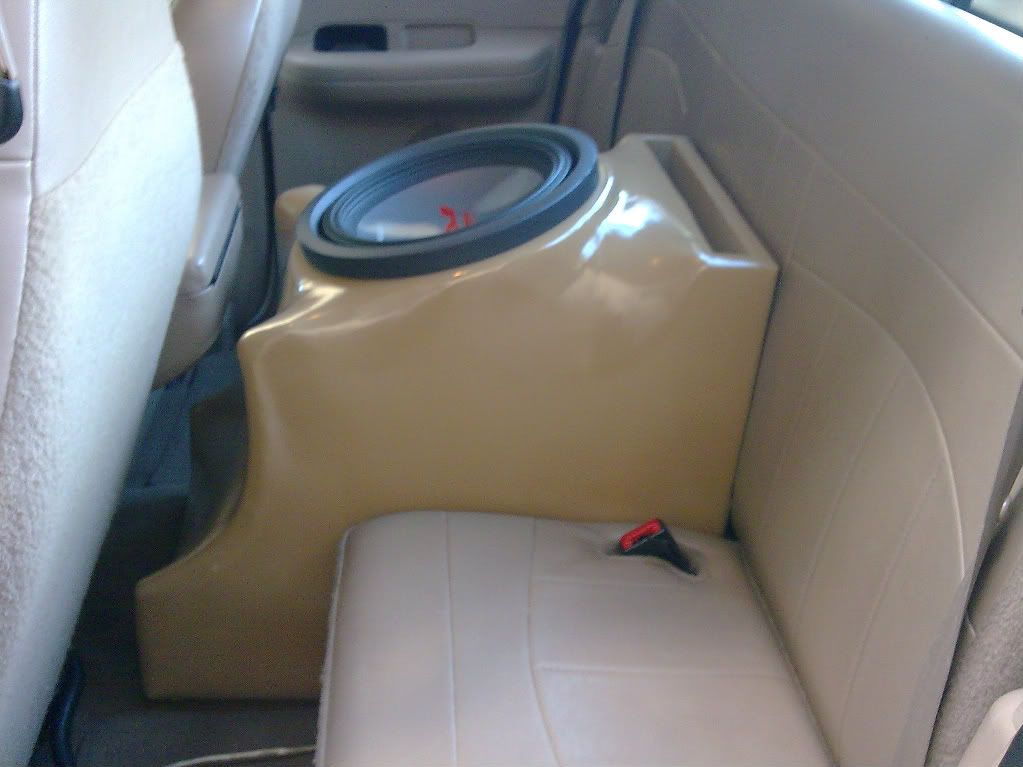

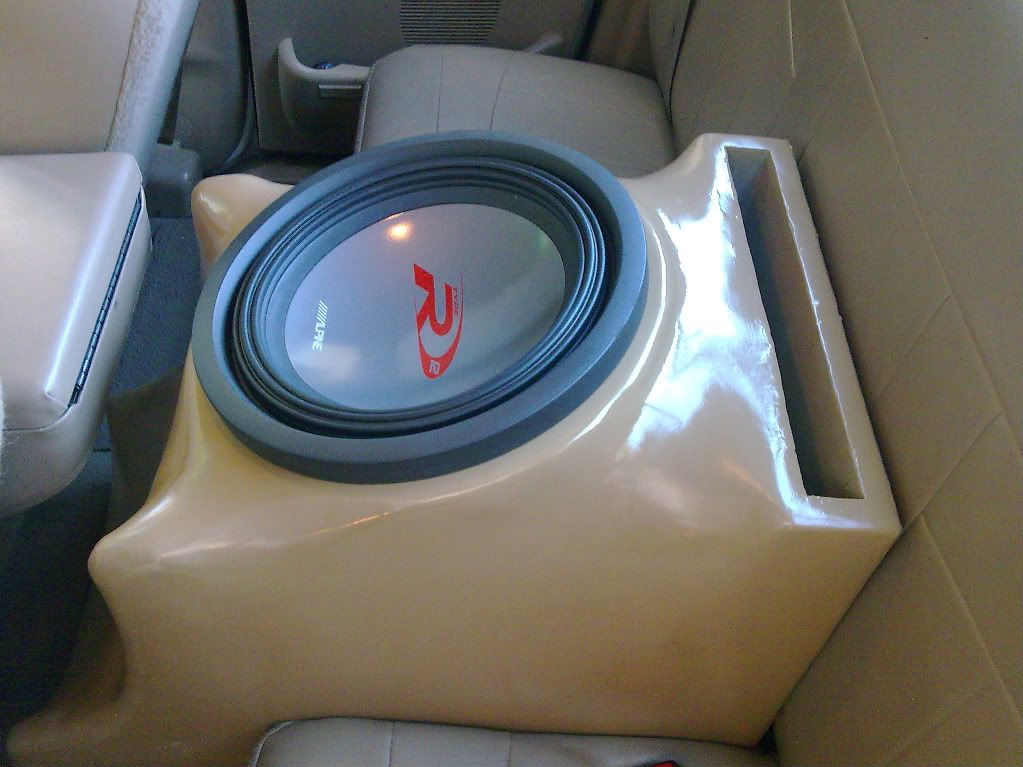

Finished.
|
|
Top
|
|
|
|
|
#1663721 - 06/14/09 06:42 PM
Re: First time using Fiberglass
[Re: Smithlink]
|
kamikazePSI
Super Trooper
Registered: 12/02/01
Posts: 5824
Loc: TX
|
|
Offline
|
|
good job on a first attempt.
using a lightweight body filler and a high build primer will help make the surface easier to smooth out. make sure to use a sanding block for flat areas, and a flexible pad for the contours.
avoid sanding with just your bare hands and a piece of sandpaper as much as possible. the uneven surface of your hands will lead to the "cottage cheese" finish.
also, it looks like you could have used more MDF on the sides instead of 'glass since that area is flat.
but yeah, great job. with a bit of fine tuning, you can make the box look professional.
_________________________
PM me if anyone wants to buy a 154 count of metra dash kits, and wiring harnesses from me. nearly all of them are unopened. asking $175 + shipping.
|
|
Top
|
|
|
|
|
#1663771 - 06/14/09 11:38 PM
Re: First time using Fiberglass
[Re: kamikazePSI]
|
endofdays89
SD Gimp
Registered: 07/26/08
Posts: 92
|
|
Offline
|
|
extremely nice dude. I couldn't stop staring at the first build i did.
_________________________
Subs: 2 Alpine Type R
|
|
Top
|
|
|
|
|
#1664680 - 06/16/09 08:47 PM
Re: First time using Fiberglass
[Re: endofdays89]
|
keep_hope_alive
in another life, i'm a serial killer
SD I Power Bombed the Undertaker
Registered: 04/24/07
Posts: 13370
Loc: Quad Cities, IL
|
|
Offline
|
|
if you get the motivation, go back and put 2-3 layers of glass on all of the inside surfaces, stiffen up the whole thing a bit.
very creative work.
|
|
Top
|
|
|
|
|
#1668265 - 06/24/09 01:48 PM
Re: First time using Fiberglass
[Re: tinkler23]
|
ebes
SD Ralph Wiggum
Registered: 05/31/08
Posts: 32
|
|
Offline
|
|
thats a sweet box for a first attempt
|
|
Top
|
|
|
|
|
#1668271 - 06/24/09 02:00 PM
Re: First time using Fiberglass
[Re: tinkler23]
|
kamikazePSI
Super Trooper
Registered: 12/02/01
Posts: 5824
Loc: TX
|
|
Offline
|
|
If he used MDF on the sides, it would defeat the purpose of the final look of the glass. Those contours are the look he was going for. If it looks square then what was the point?
his contours on the side don't start until the halfway point. I was just saying he could have used more mdf at the bottom, not the entire side.
_________________________
PM me if anyone wants to buy a 154 count of metra dash kits, and wiring harnesses from me. nearly all of them are unopened. asking $175 + shipping.
|
|
Top
|
|
|
|
|
#1669155 - 06/25/09 11:38 AM
Re: First time using Fiberglass
[Re: kamikazePSI]
|
SLOWnSTEADY
SD Gimp
Registered: 05/04/07
Posts: 96
|
|
Offline
|
|
Looks good, may be could have sued a little more finish work but still pretty nice IMO
|
|
Top
|
|
|
|
|
#1670247 - 06/27/09 12:32 PM
Re: First time using Fiberglass
[Re: SLOWnSTEADY]
|
Futuneral
SD Newbie
Registered: 06/27/09
Posts: 1
|
|
Offline
|
|
How does it sounds when it's so close to your ears? Did it fit well with the fronts?
I did a fiberglass sub too with the same speaker (http://guide-guy.blogspot.com/2009/06/stealth-car-sub-woofer-in-infiniti-fx35.html). It's in a trunk and it's closed. Sounds nice to me but I think it could use some time delay.
|
|
Top
|
|
|
|
|
#1689797 - 08/05/09 08:36 PM
Re: First time using Fiberglass
[Re: Futuneral]
|
qlc1964
Member
Registered: 11/28/06
Posts: 81
Loc: st.louis mo.
|
|
Offline
|
|
this good for first timer like me.
do you have any box vibration when sub is playing on the sides?
how thick is the fiber glass? and i know about not having
patience doing your first project.
|
|
Top
|
|
|
|
|
#1692069 - 08/11/09 08:52 AM
Re: First time using Fiberglass
[Re: qlc1964]
|
Graabir Boubi
SD Newbie
Registered: 08/11/09
Posts: 4
|
|
Offline
|
|
I have always made my own boxes out of mdf and left it at that. Now after seeing your work I want to go make ny next one using 'glass. was it difficult for a first timer, or does it just take patience?
|
|
